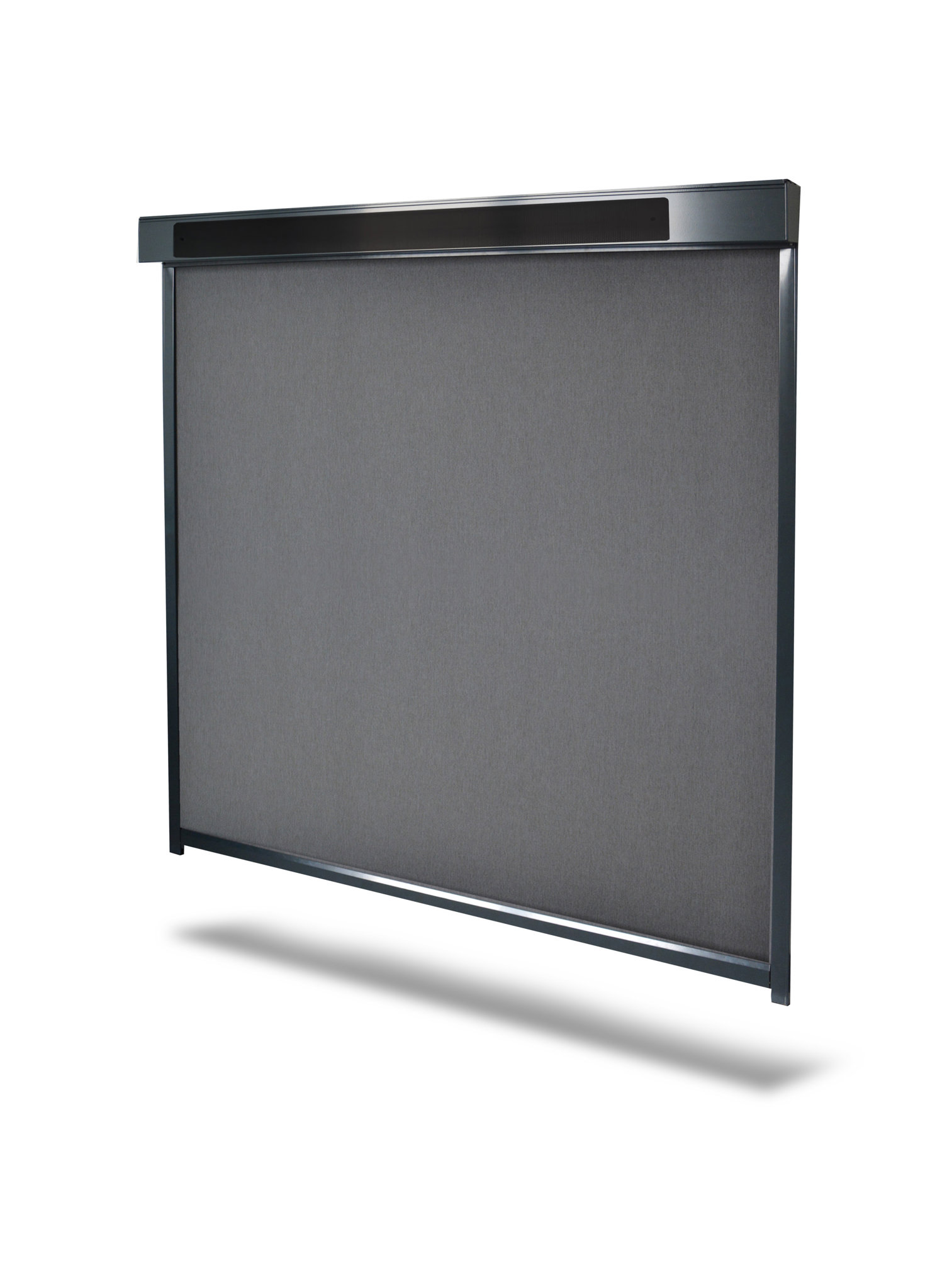

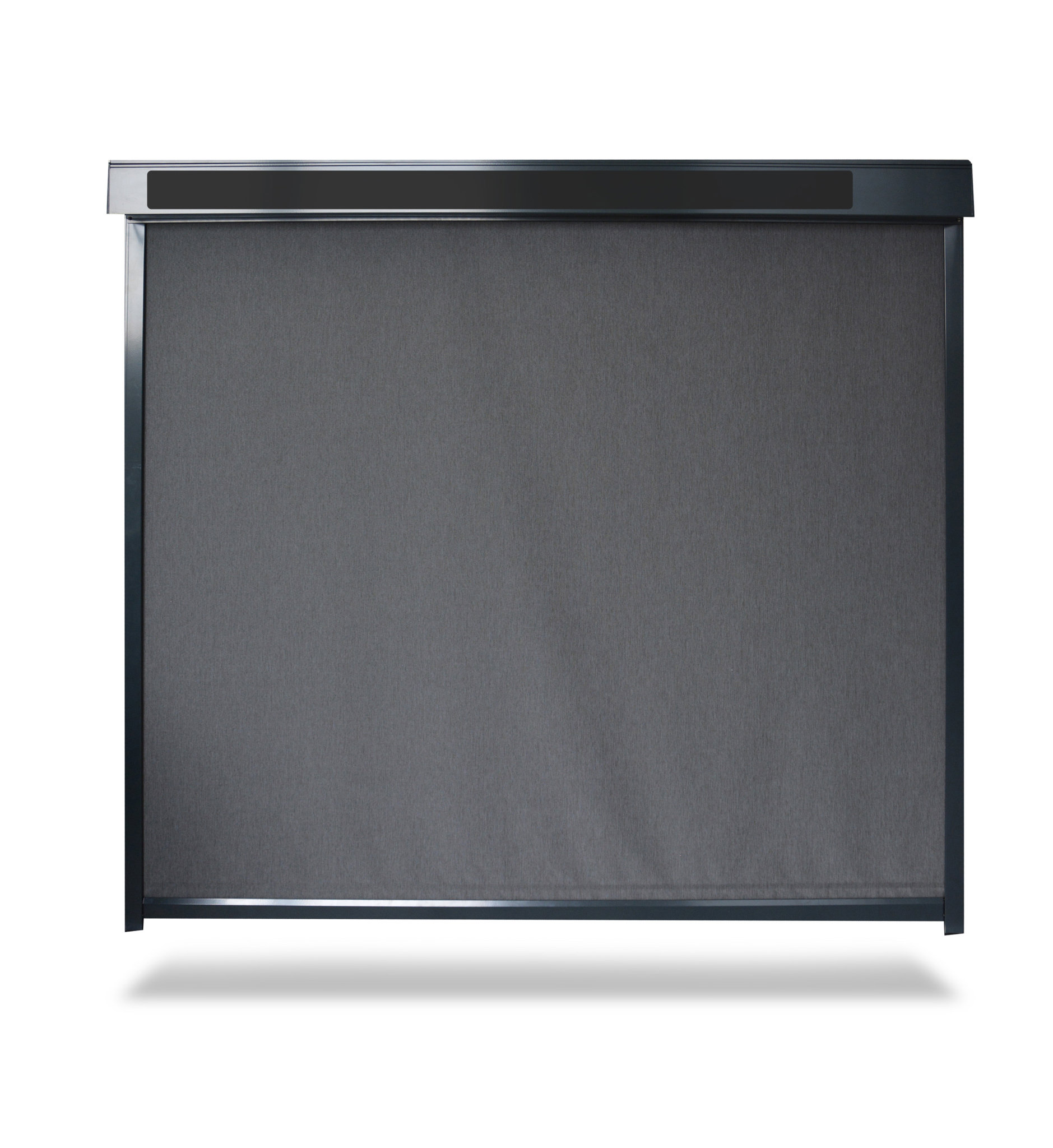

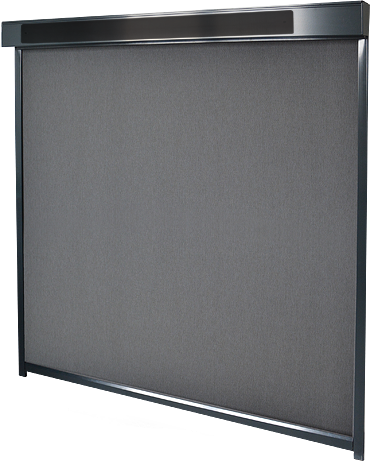

Screen roller shutter SCREEN ALFA SOLAR – ZIP

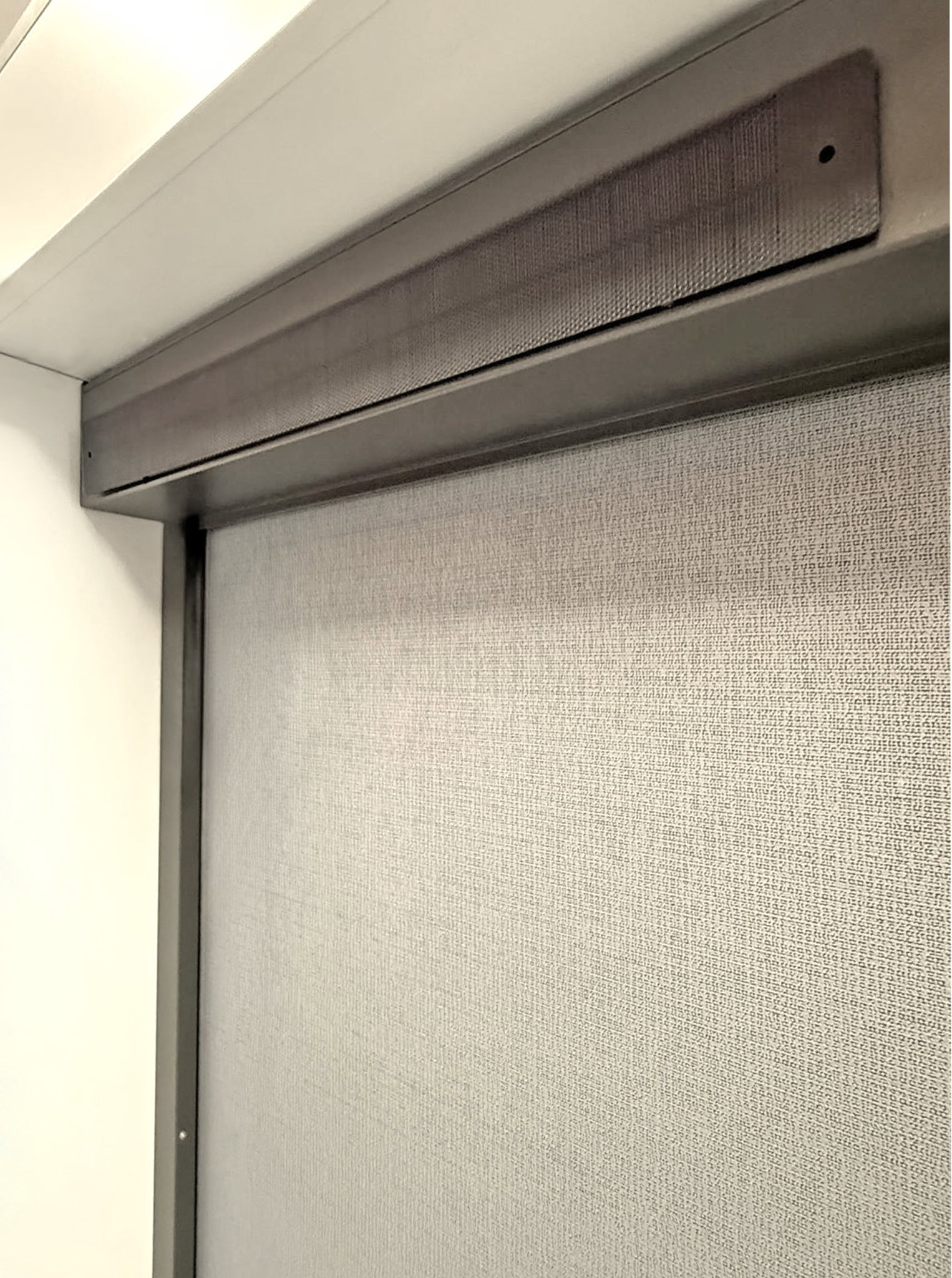

	Head rail	Bottom rail	Side guidance
	square	high	guide rail
Business name	BOX pro SCREEN ALFA	ZPA012	ZPA016/839	ZPA016/830	ZPH214	ZPA016/838	ZPA036/840-1	ZPA037/849
Dimension (mm)	90 × 90 110 × 110 150 × 150	18 × 50 27 × 36	30 × 40	20 × 40	70 × 40	40 × 40	31,8 × 40	41,8 × 40
Material	Al	Al	Al	Al	Al	Al	Al	Al
Cross-section		18 × 50	Typ 839	Typ 830	Typ 837	Typ 838	Typ 840-1	Typ 849
Colour	Standard: RAL 9006 light silver RAL 9006S light silver structure RAL 9007 dark silver RAL 9007S dark silver structure RAL 9010 white RAL 9010M white matt RAL 9010S white structure RAL 7016 anthracite grey RAL 7016M anthracite grey matt RAL 7016S anthracite grey structure RAL 7012 basalt grey RAL 7021 black grey RAL 8014 brown RAL 8014S brown structure RAL 8014M brown matt DB 702 pearl light grey DB 703 pearl dark Surcharge: Other colors RAL upon request

*except of plastic parts

The materials offered for screen blinds are as follows

• Glass fiber covered with a PVC layer
• Polyester fiber with a PVC layer

Serge

• Specifically weaved screen fabrics, that are very flexible and therefore suitable to interiors as well as exteriors.
• They consist of 58,8 % PVC and 41,5 % glass fibre.

Satiné, Satiné Blackout

• PVC-coated fibreglass provides excellent dimension stability, protection against fire and chemicals, UV stability and excellent resistance to weather conditions.
• In the basic version, the fabric is composed of 42 % fiberglass and 58 % PVC coating (except for the blackout-type fabrics).
• Soltis 99 and B99 can only be used indoors

Soltis 86, 92, B92, 99, B99

• The material is made from a fabric woven from a high-strength polyester fibre, with surface treatment by pigmented PVC. The material is pre-stressed using the Precontraint technology in two directions, ensuring high dimensional stability and strength.
• Further advantages of the material include excellent heat-insulating properties, optimal visual and lighting properties, colour fastness (UV-stability), and flame resistance (B1, M1).
• Soltis 99 and B99 can only be used indoors

SCR 4005

• Internal and external use
• Lower price with keeping high quality standard

Cristal Plus 500 FSR

• The fabric is made of PVC -P compound (PVC + plasticizers + additives). It´s a thermoplastic material, it means that the polymer chains change behaviour depending on the temperatures.
• In the temperature range 55 °C / –10 °C the fabric does not change its structure.
• The material also has a very low thermal conductivity, which means that it does not absorb too much heat, and will not overheat.

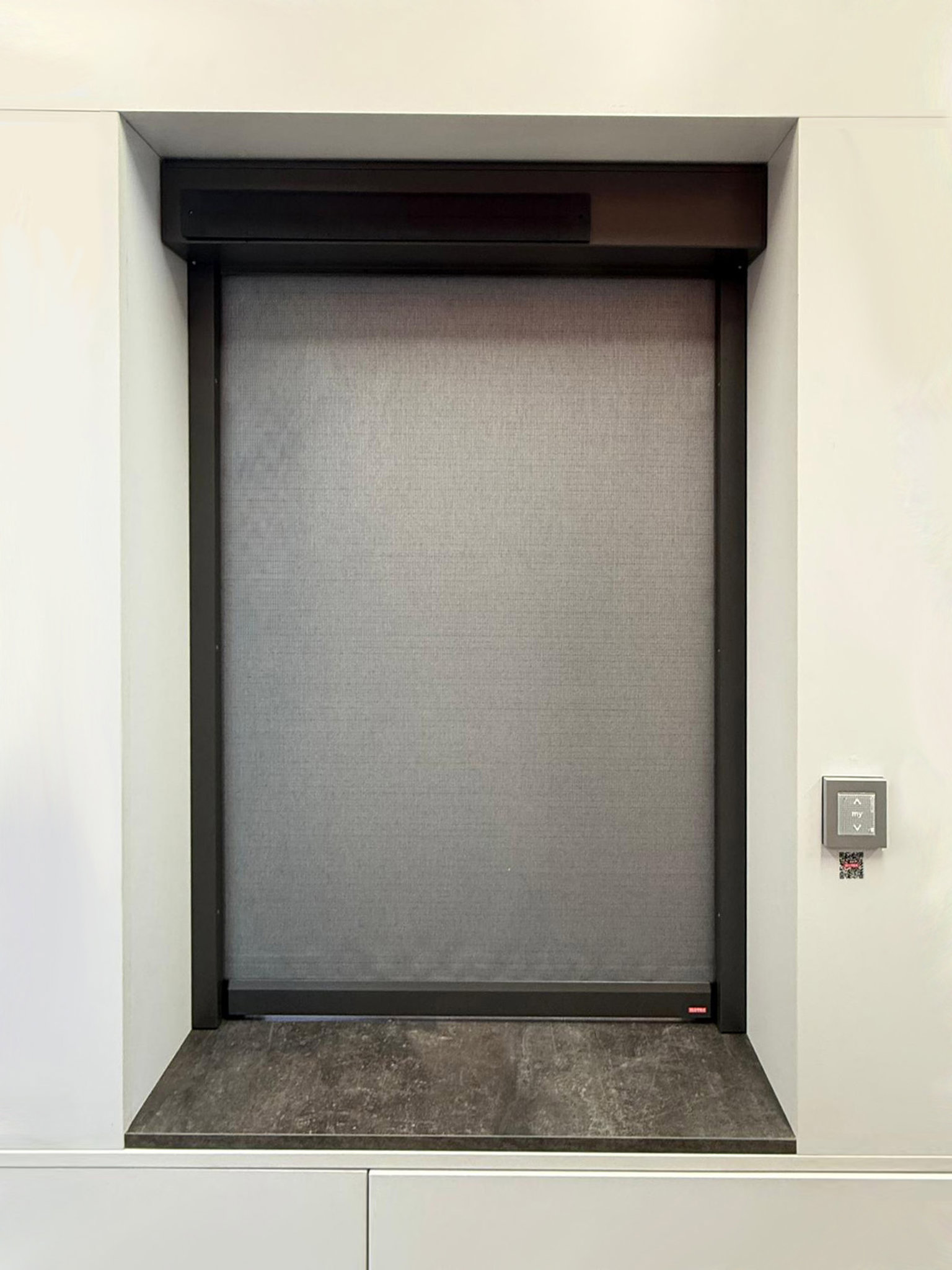

• Into the window opening (ceiling)
• In front of the window opening (wall)
• By the special mounting profile (into the pergola)
