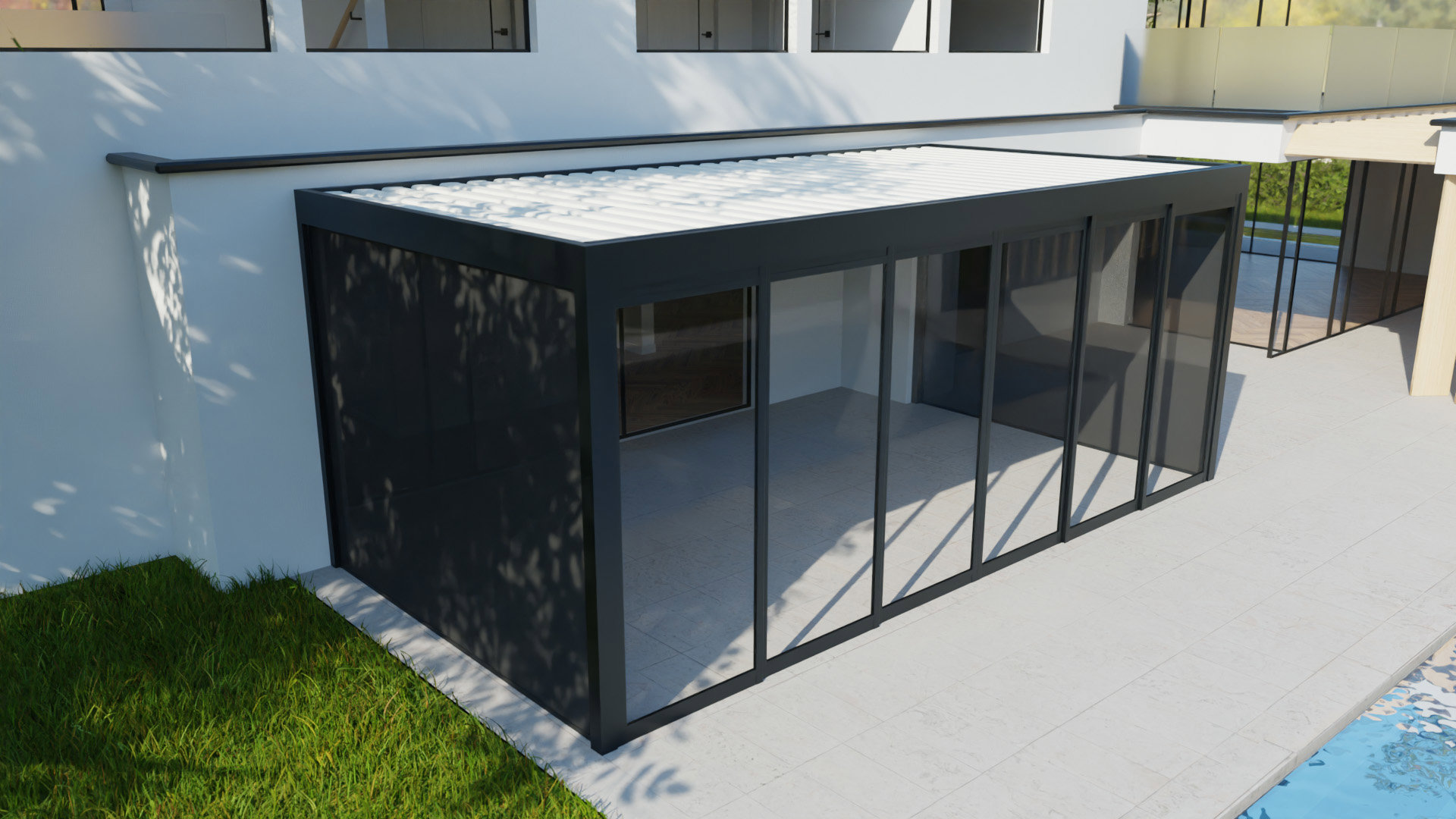

The ARTOSI SLIDE PANELS side walls represent a unique shading solution perfectly convenient to the ARTOSI bioclimatic pergola or the ARTOSI Carport. The side walls act as a shading and decorative element at the same time, protecting against adverse weather and noise, thus increasing user comfort and your privacy.
ARTOSI SLIDE PANELS represents a sliding wall system, where the panels run on the lower rail and are guided by the upper rail. Stability is ensured by the lateral guide rails.
The system stands out for its very easy operation and minimal maintenance requirements. The movement/opening can be solved either to one side or centrally as a curtain. A great advantage is the easy installation of the sliding walls, which complements the modular construction of the ARTOSI bioclimatic pergola or ARTOSI Carport.
The individual aluminium elements of the sliding panels can be colour-tuned with the ARTOSI pergola or carport, because the offer of standard colours is identical. Any RAL colour can be chosen for painting, and for panels, Decoral technology is also available.
clearance sale
| Width (mm) | Height (mm) | |||
|---|---|---|---|---|
| min. | max. | min. | max. | |
| One panel | 500 | 1250 | 550 | 2700 |
| Shading area | 1000 | 7000 | 550 | 2700 |

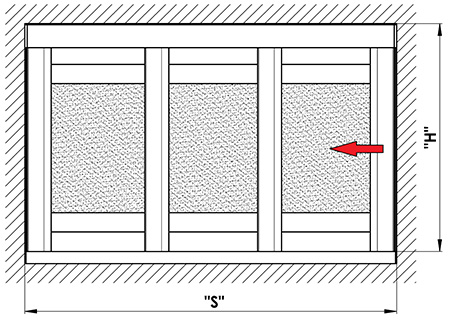

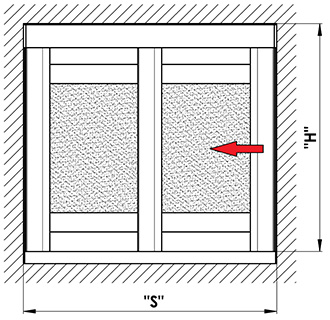

| Opening size | Width S (mm) | Height H (mm) | ||
|---|---|---|---|---|
| min. | max. | min. | max | |

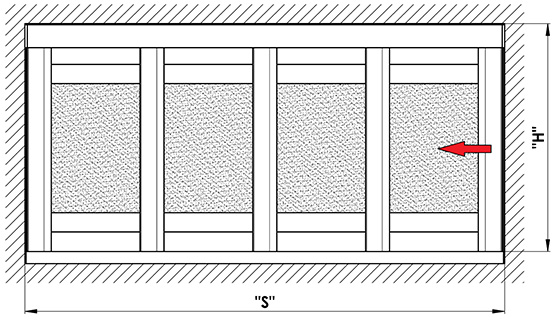

| 2 panels (2-L) | 1000 | 2500 | 550 | 2700 |
| 3 panels (3-L) | 1500 | 3750 | 550 | 2700 |
| 4 panels (4-L) | 2000 | 5000 | 550 | 2700 |

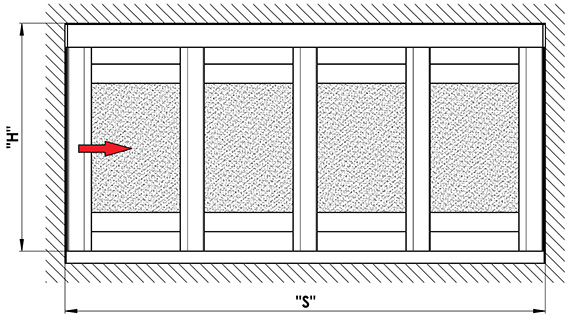

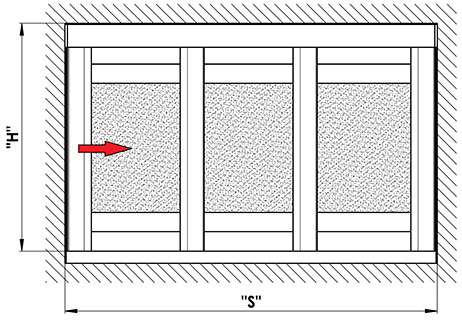

| Opening size | Width S (mm) | Height H (mm) | ||
|---|---|---|---|---|
| min. | max. | min. | max | |

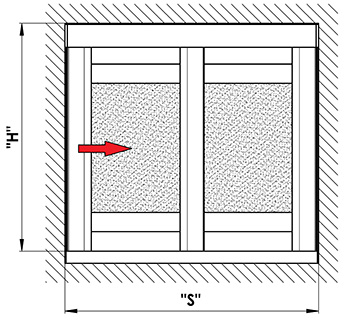

| 2 panels (2-P) | 1000 | 2500 | 550 | 2700 |
| 3 panels (3-P) | 1500 | 3750 | 550 | 2700 |
| 4 panels (4-P) | 2000 | 5000 | 550 | 2700 |

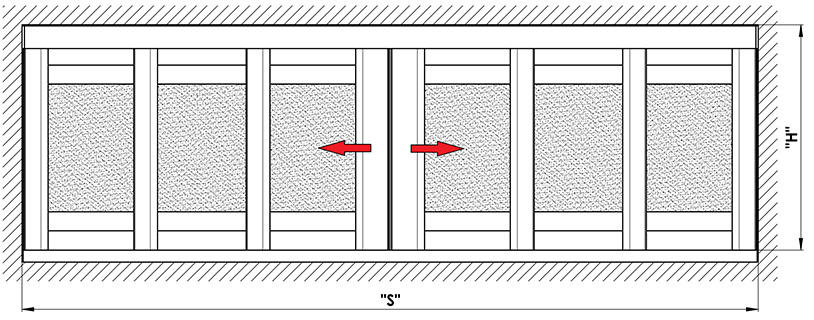

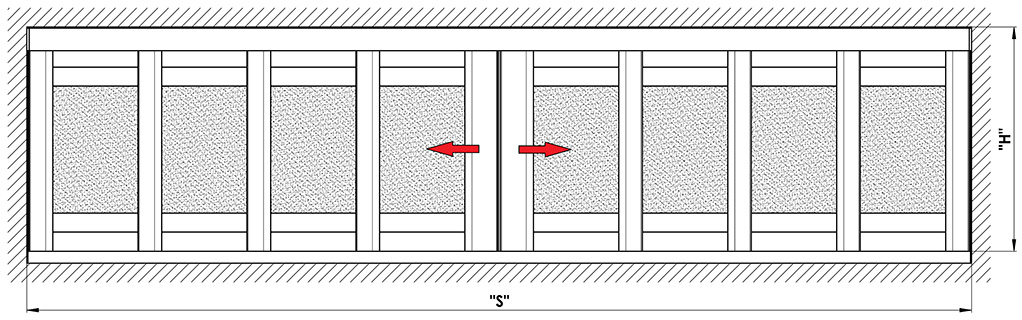

| Opening size | Width S (mm) | Height H (mm) | ||
|---|---|---|---|---|
| min. | max. | min. | max | |

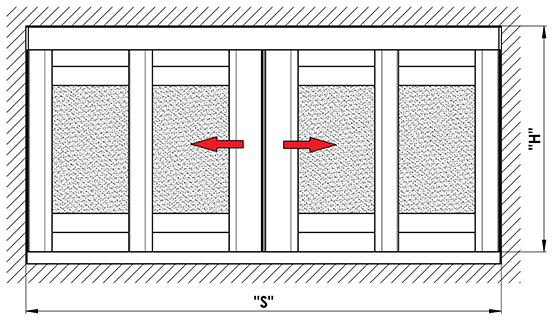

| 2 panels (2+2-LP) | 2000 | 5000 | 550 | 2700 |
| 3 panels (3+3-LP) | 3000 | 7000 | 550 | 2700 |
| 4 panels (4+4-LP) | 4000 | 7000 | 550 | 2700 |

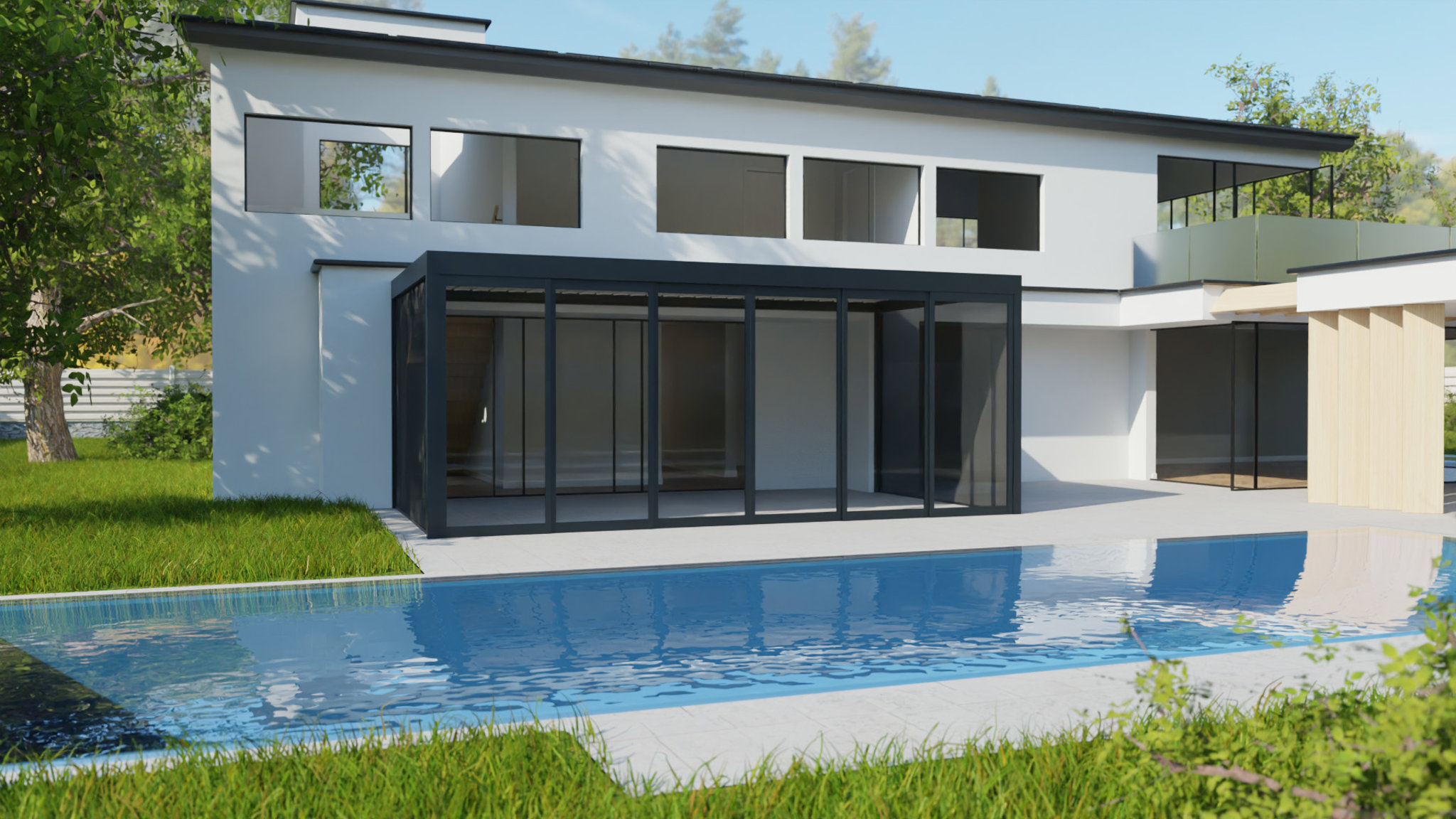

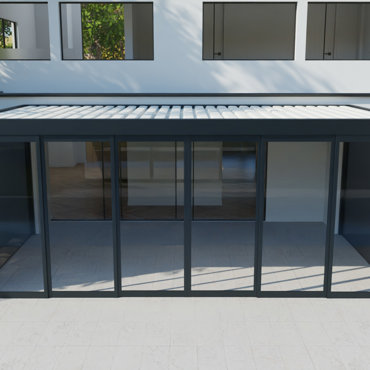

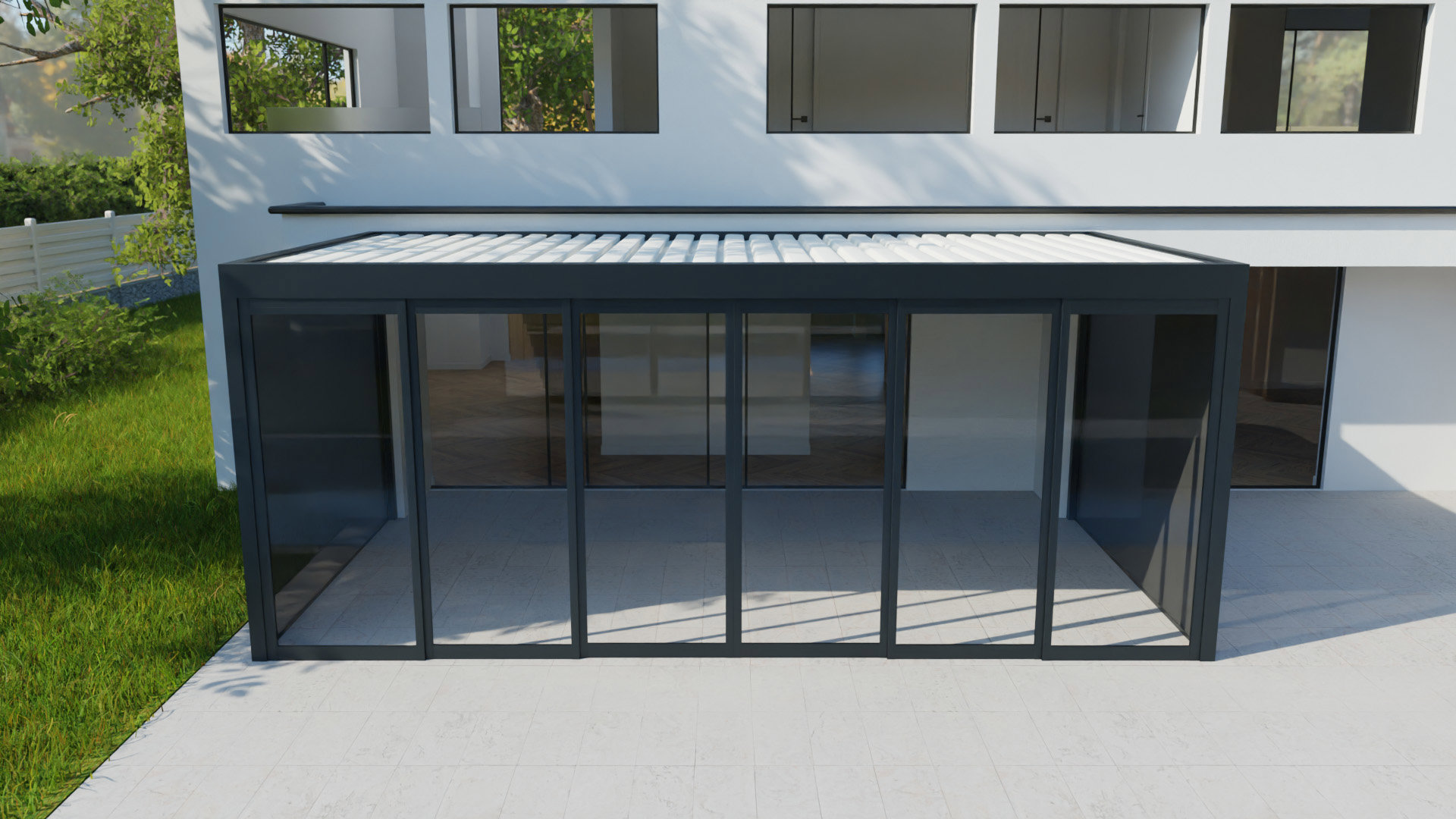

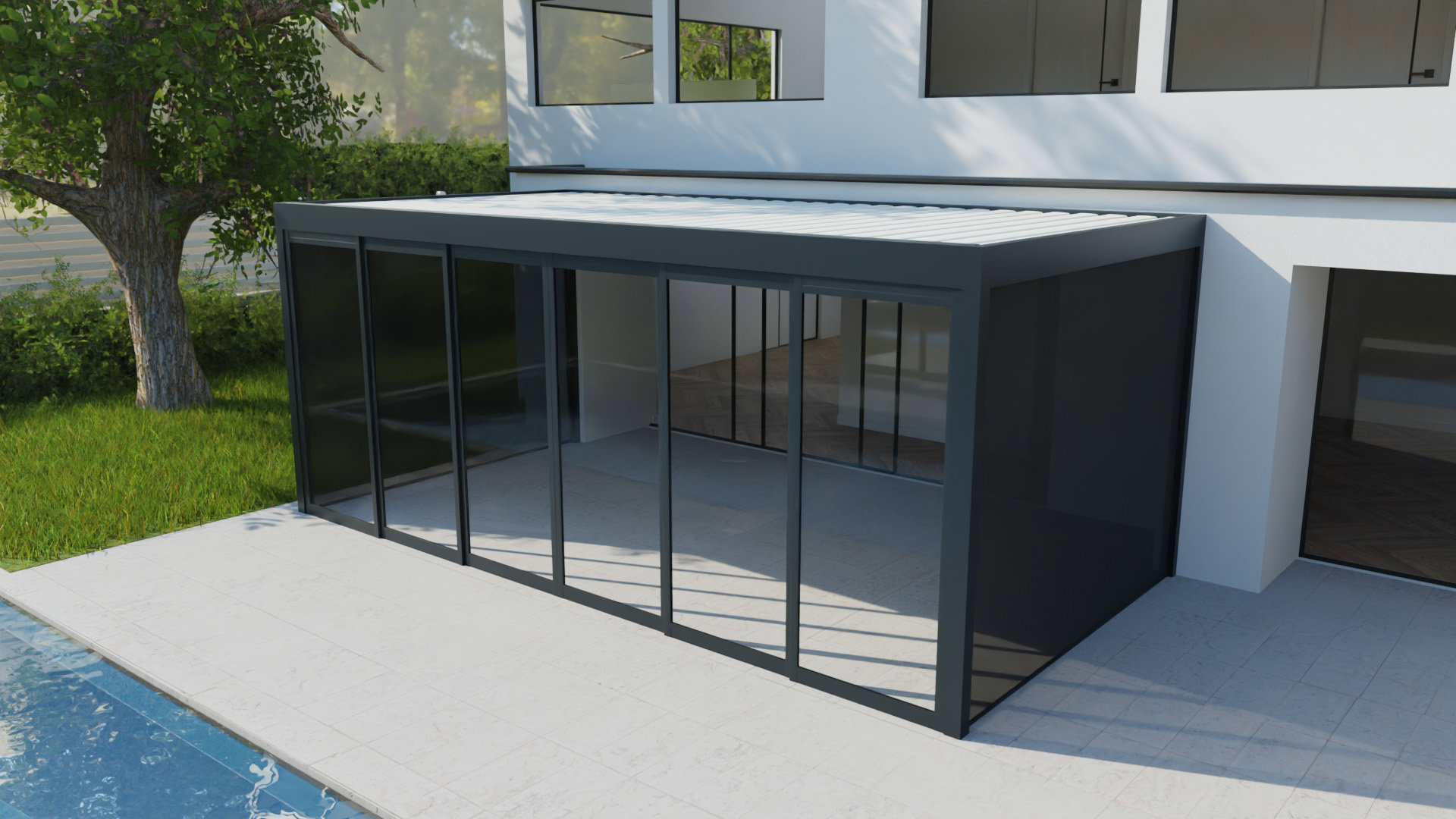

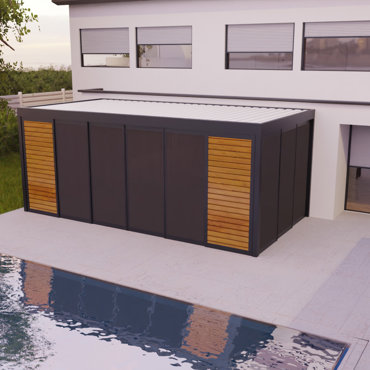

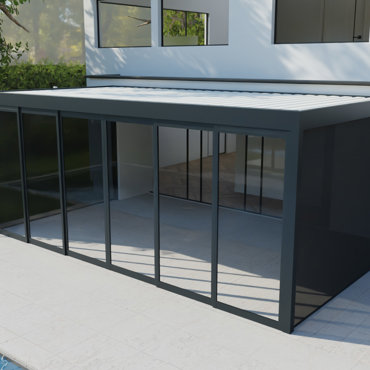

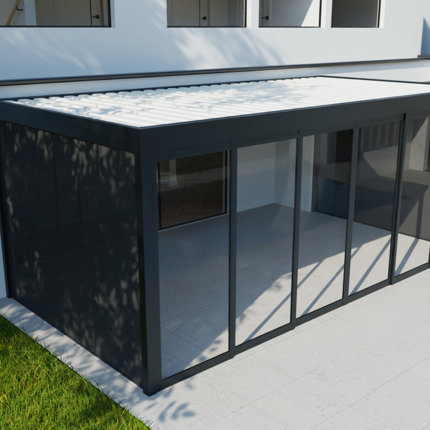

Product gallery
